Pail
Drying Racks

RP/RSS Series

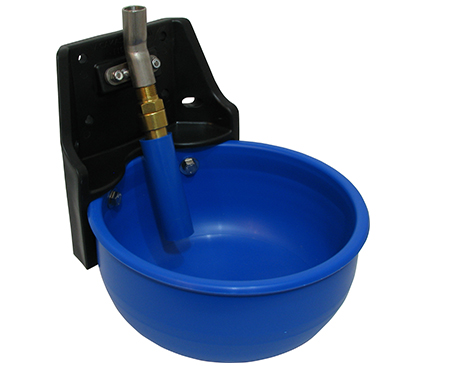

RP-2011 Nose Paddle Bowl

Flow Rate

Solid Brass Valve Body

1/2in Water Inlets

High Impact Polypropylene

Non-Siphoning

Moulded High Impact Polypropylene Mounting Bracket

product image

Flow Rate

22Lpm - 5.8 US gpm

Solid Brass
Valve Body

Durable Solid Brass Construction
Stainless steel spring and urethane washer inside the valve body can be replaced if needed
Stainless steel valve body option available where required for treated water

½" Water Line

½" FPT top feed water inlet

Heavy Duty

High Impact Polypropylene bowl
10" diameter, 5" deep

Non-Siphoning

Meets general anti-siphoning regulations when installed as directed
Stops Flow of Contaminated Water Back into the Water Supply

Mounting

Moulded High Impact Polypropylene Mounting Bracket

RP-2011 Nose Paddle Bowl

product image

Flow Rate

Flow Rate

22Lpm - 5.8 US gpm

Solid Brass Valve Body

Solid Brass
Valve Body

Durable Solid Brass Construction
Stainless steel spring and urethane washer inside the valve body can be replaced if needed
Stainless steel valve body option available where required for treated water

1/2in Water Line

1/2" Water Line

½" FPT top feed water inlet

Heavy Duty

Heavy Duty

High Impact Polypropylene bowl
10" diameter, 5" deep

Non-siphoning

Non-Siphoning

Meets general anti-siphoning regulations when installed as directed
Stops Flow of Contaminated Water Back into the Water Supply

Mounting

Mounting

Moulded High Impact Polypropylene Mounting Bracket
